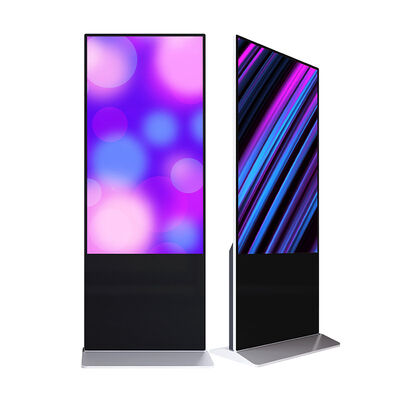

32 Inch Vertical Digital Signage Display With SDK Function And USB Playback LCD Screen

32 Inch Vertical Digital Signage Display With SDK Function And USB Playback LCD Screen

Brand Name: YOULESHI
Model Number: ULS-32LD03
MOQ: 1pcs
Supply Ability: 2000 pieces per month for each product
Detail Information
Certification:
CCC,RoHS,FCC,CE,UN38.3
Application:
Indoor
Type:
LCD
Color:
Full Color
Supplier Type:
ODM, Other, OEM
Media Available:
Datasheet, Photo
Place Of Origin:
Guangdong, China
Model Number:
ULS-32LD03
Brand Name:
YOULESHI
Use:
Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Exhibition Hall, Airport, Subway, Education, Medical Treatment
Function:
SDK
Specification:
Touch Screen
Touch Screen Type:
Capacitive
Brightness:
350 Nits
Display Ratio:
16:9
Response Time:
8ms
Contrast Ratio:
5000:1
Lifespan (hours):
60000
IP Rating:
IP45
Installation Type:
Vertical
Resolution:
1920*1080
View Angle(H/V):
178(H)/178(V)
Warranty:
1-3Year
Size:
10.1 Inch-110 Inch
Resolution:
1920*1080/3840*2160
OS:
Android/Windows
Touch Screen:
Optional
4G:
Optional
Warranty:
1-3 Year
Life Time:
60000 Hours
Connectivity:
WiFi, Bluetooth
Panel:
100% A+ Grade Panel
Picture Format:
Mp3, Wma, Ogg, Aac, Wav
Color Option:
White/Black Or Optional
Certificates:
CE FCC ROHS
Usb:
Yes
Max Resolution:
1920*1080/3840*2160
Screen Size:
10.1-110 Inches
Operation Humidity Range:
10% To 80%
Osd Language:
English,Chinese
Contrast:
≥ 1000: 1
Input:
AC 110V~240V,50/60Hz, 110W
Touch:
Optional
Packaging Details:
Paper box/wooden box/flying box
Highlight:

SDK Function Vertical Digital Signage

,

USB Playback Vertical Digital Signage

,

SDK Function Digital Signage Display

Product Description
32 Inch Indoor Vertical Capacitive Touch LCD Screen
Picture And Video Interactive Floor Standing Digital Signage Display Screen
32 Inch Vertical Digital Signage Display With SDK Function And USB Playback LCD Screen 0 32 Inch Vertical Digital Signage Display With SDK Function And USB Playback LCD Screen 1 32 Inch Vertical Digital Signage Display With SDK Function And USB Playback LCD Screen 2
Key Features
  • 32-65 inch capacitive touch with built-in player
  • Automatic residual image removal function
  • High contrast and brightness for vivid images
  • Fast 8ms response time with 178° ultra-wide viewing angle
  • Compatible with Android or PC systems
  • Local USB drive playback or remote program management
  • Industrial-grade power supply with safety protections
  • Low energy consumption design
Technical Specifications
Panel Features
Screen Size 32"
Active Display Area 698.4 (H) x 392.85 (V)mm
Native Resolution 1920*1080 RGB
Aspect Ratio 16:9
Brightness 350 Nits
Contrast Ratio 5000:1
Viewing Angle 178°(H)/178°(V)
Response Time 8ms
Display Color 8 bit/16.7M
Frame Rate 60Hz
Backlight LED
Life Time 60000 Hrs
System Functions
OS System Android 5.1 (Optional Android 6.0/9.0)
CPU Cortex-A53/Cortex-A17
Main Frequency 1.4 GHz/1.8 GHz
RAM DDR 1GB/2GB
Flash EMMC 8G (16G/32G Option)
Decoding Resolution Up to 1080P
Networking 4G Ethernet, WiFi, Bluetooth 4.0
Supported Formats Video: RMVB,FLV,AVI,MOV,WMV,MP4,MPEG
Image: JPG,JPEG,BMP,PNG,GIF
Audio: MP4,WMA,WAV,APE,FLAC,AAC
Additional Features RTC timing clock, USB OS update, Multi-language OSD, External GPS (Option), System watchdog
Connectivity & Power
Input Ports HDMI IN (Option), HDMI OUT*1, LAN/RJ45*1, TF*1, USB*2
Output Ports Earphone*1, Speaker 5W*2 (L/R channels)
Power Supply 100V-240V, 50-60 Hz
Power Saving ≤1W
Power Consumption ≤75W
Physical Specifications
Chassis Colors Silver, Black (Option)
Toughened Glass 4mm
Overall Size (Without wall hanging) 1640.02x460.83x66.28mm
Product Size (Including rack) 1700.02x479.2x66.28mm
Accessories WIFI Antenna*1, Remote Control*1, Power Cord*1, Warranty Card*1
