Products
Home / Products / Stretch Bar LCD Display /

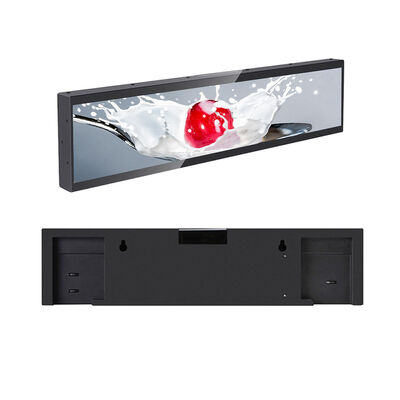

36 Inch Stretched Bar Lcd Monitor Bar Lcd Panel With 500Nits Brightness

36 Inch Stretched Bar Lcd Monitor Bar Lcd Panel With 500Nits Brightness

Brand Name: YOULESHI
Model Number: ULS-36TX02
MOQ: 1pcs
Supply Ability: 2000 pieces per month for each product
Detail Information
Product Description
Detail Information
Certification:
CCC,RoHS,FCC,CE,UN38.3
Application:
Indoor
Type:
LCD
Color:
Full Color
Supplier Type:
ODM, Other, OEM
Media Available:
Datasheet, Photo
Place Of Origin:
China
Model Number:
ULS-36TX02
Brand Name:
YOULESHI
Use:
Advertising Publish, Retail Store, Shopping Mall, Exhibition Hall, Airport, Subway, Restaurant & Hotel Supplies, Education, Medical Treatment
Function:
SDK
Specification:
Stretch Bar, Digital Poster
Touch Screen Type:
NO
Brightness:
500 Nits
Display Ratio:
3:2
Response Time:
8ms
Contrast Ratio:
4000:1
Lifespan (hours):
30000
IP Rating:
IP45
Installation Type:
Hanging
Resolution:
1920 X R.G.B. X 540
View Angle（H/V）:
178(H)/178(V)
Warranty:
1-3Year
Size:
10.1 Inch-110 Inch
Resolution:
1920*1080/3840*2160
OS:
Android/Windows
Touch Screen:
Optional
4G:
Optional
Warranty:
1-3 Year
Life Time:
60000 Hours
Connectivity:
WiFi, Bluetooth
Panel:
100% A+ Grade Panel
Picture Format:
Mp3, Wma, Ogg, Aac, Wav
Color Option:
White/Black Or Optional
Certificates:
CE FCC ROHS
Usb:
Yes
Max Resolution:
1920*1080/3840*2160
Screen Size:
10.1-110 Inches
Operation Humidity Range:
10% To 80%
Osd Language:
English,Chinese
Contrast:
≥ 1000: 1
Input:
AC 110V~240V,50/60Hz, 110W
Touch:
Optional
Packaging Details:
Paper box/wooden box/flying box
Highlight:

36 Inch bar lcd panel

,

36 Inch Stretched Bar Lcd Monitor

,

500Nits Stretched Bar Lcd Monitor

Product Description
36 Inch Indoor Stretch Bar Display Screen LCD Bar Rack
Digital Display/Edge Display/Wide Panel LCD Digital Signage
36 Inch Stretched Bar Lcd Monitor Bar Lcd Panel With 500Nits Brightness 0 36 Inch Stretched Bar Lcd Monitor Bar Lcd Panel With 500Nits Brightness 1 36 Inch Stretched Bar Lcd Monitor Bar Lcd Panel With 500Nits Brightness 2
Industrial-grade 13.4-88 inch rack bar LCD display for advertising and information presentation. Customizable equipment with advanced features for professional digital signage applications.
Key Features
  • Automatic residual image removal function
  • High contrast and brightness for vivid image quality
  • Fast 8ms response time with 178° ultra-wide viewing angle
  • Advanced electrical control system for high reliability
  • Industrial power supply with safety protections
  • Low energy consumption design
  • Power outage and short circuit protection
Panel Specifications
Feature Specification
Active Display Area 878.112 (H) x 242.676 (V) mm
Pixel Pitch 0.15245 (H) x 0.4494 (V) mm
Native Resolution 1920 x R.G.B. x 540
Aspect Ratio 3:2
Brightness 500 Nits
Contrast Ratio 4000:1
Viewing Angle 178°(H)/178°(V)
Response Time 8ms (Gray to Gray)
Display Color 8 bit/16.7M
Frame Rate 60Hz
Backlight LED
Life Time >30000 Hours
System Specifications
Feature Specification
OS Android 11
Motherboard RK3566
CPU Cortex-A55
Main Frequency 1.8GHz
RAM DDR 2GB
Flash EMMC 16G
Networking WIFI: 802.11 b/g/N/ac, 2.4G
Input Ports TF*1, USB2.0*1, USB3.0*1, RJ45*1
Power Specifications
Power Supply 100V-240V, 50-60 Hz
DC Output 12V 5A
Power Consumption 60W (Max)
Mechanical Specifications
Chassis Material Metal
Chassis Color Black
Product Size (Without Bracket) 908.312*269.28*39mm
Product Size (With Bracket) 908.312*269.28*39mm
Packing Dimensions 1008*369*139mm
Net Weight 9.6kg
Gross Weight 1kg
Included Accessories
  • Warranty Card
  • User Manual
  • Remote Control
  • Adapter
  • Wall Bracket
36 Inch Stretched Bar Lcd Monitor Bar Lcd Panel With 500Nits Brightness 3 36 Inch Stretched Bar Lcd Monitor Bar Lcd Panel With 500Nits Brightness 4 36 Inch Stretched Bar Lcd Monitor Bar Lcd Panel With 500Nits Brightness 5 36 Inch Stretched Bar Lcd Monitor Bar Lcd Panel With 500Nits Brightness 6 36 Inch Stretched Bar Lcd Monitor Bar Lcd Panel With 500Nits Brightness 7 36 Inch Stretched Bar Lcd Monitor Bar Lcd Panel With 500Nits Brightness 8 36 Inch Stretched Bar Lcd Monitor Bar Lcd Panel With 500Nits Brightness 9
