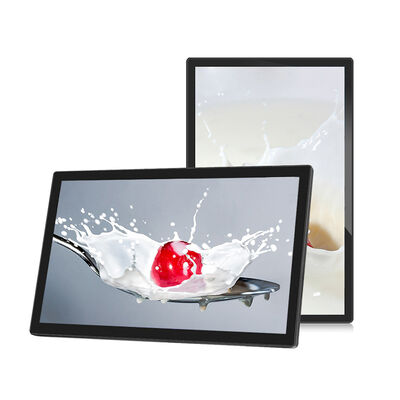

21.5 Inch Indoor Digital Signage with 178° Viewing Angle 3000:1 Contrast Ratio and Capacitive Touch LCD Interactive Display Screen

Name: 21.5 Inch Indoor Digital Signage with 178° Viewing Angle 3000:1 Contrast Ratio and Capacitive Touch LCD Interactive Display Screen
Brand: Shenzhen Youleshi Technology Co., Ltd
SKU: ULS-22BG02
Availability: InStock

Brand Name:	YOULESHI
Model Number:	ULS-22BG02
MOQ:	1pcs
Supply Ability:	2000 pieces per month for each product

Detail Information

Product Description

Detail Information

Place of Origin:

深圳

Certification:

CCC,RoHS,FCC,CE,UN38.3

Application:

Indoor

Type:

LCD

Color:

Full Color

Supplier Type:

ODM, Other, OEM

Media Available:

Datasheet, Photo

Place Of Origin:

Guangdong, China

Model Number:

ULS-22BG02

Brand Name:

YOULESHI

Use:

Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Exhibition Hall, Airport, Subway, Restaurant & Hotel Supplies, Education, Medical Treatment

Function:

SDK

Specification:

Digital Poster, Touch Screen

Touch Screen Type:

Capacitive

Brightness:

250cd/m2

Display Ratio:

16:9

Response Time:

8ms

Contrast Ratio:

3000:1

Lifespan (hours):

60000

IP Rating:

IP45

Installation Type:

Hanging

Resolution:

1920*1080

View Angleï¼ˆH/Vï¼‰:

178Â°(HV)

Warranty:

1 Year

Size:

10.1 Inch-110 Inch

Resolution:

1920*1080/3840*2160

OS:

Android/Windows

Touch Screen:

Optional

4G:

Optional

Warranty:

1-3 Year

Life Time:

60000 Hours

Connectivity:

WiFi, Bluetooth

Panel:

100% A+ Grade Panel

Picture Format:

Mp3, Wma, Ogg, Aac, Wav

Color Option:

White/Black Or Optional

Certificates:

CE FCC ROHS

Usb:

Yes

Max Resolution:

1920*1080/3840*2160

Screen Size:

10.1-110 Inches

Operation Humidity Range:

10% To 80%

Osd Language:

English,Chinese

Contrast:

≥ 1000: 1

Input:

AC 110V~240V,50/60Hz, 110W

Touch:

Optional

Warranty:

1-3Year

Packaging Details:

Paper box/wooden box/flying box

Highlight:

UHD Indoor Digital Signage

custom Indoor Digital Signage

Product Description

21.5 Inch Multifunctional Display Screen - Wall Mounted Touch LCD Interactive Digital Signage

Key Features

10.1-inch to 110-inch built-in player options available
Automatic residual image removal function
High contrast and brightness for vivid image quality
Fast 8ms response time with 178° ultra-wide viewing angle
Compatible with both Android and PC systems
Optional touch screen functionality
Supports local USB playback or remote program management
Industrial-grade power supply with safety protections
Low energy consumption with power outage and short circuit protection

Panel Specifications

Screen Size	21.5"
Active Display Area	475.6×270.11mm (HV)
Native Resolution	1920×1080 RGB
Aspect Ratio	16:9
Brightness	250 Nits
Contrast Ratio	3000:1
Viewing Angle	176°(H)/176°(V)
Response Time	8ms
Display Color	8 bit/16.7M
Backlight	LED
Life Time	60,000 Hours

System Functions

OS System: Android 9.0

CPU: Cortex-A53 1.4 GHz

Memory: DDR 1GB RAM, EMMC 8G Flash

Networking: 4G Ethernet, WiFi, Bluetooth 4.0

Video Formats: RMVB, FLV, AVI, MOV, WMV, MP4, MPEG

Image Formats: JPG, JPEG, BMP, PNG, GIF

Connectivity

Input Ports	Output Ports
HDMI IN (Optional)	Earphone
HDMI OUT ×1	5W×2 Speaker Channels
LAN/RJ45 ×1
TF ×1
USB ×2

Physical Specifications

Chassis Colors	Silver, Black (Optional)
Toughened Glass	3mm
Dimensions (Without Mount)	522.79×314.3×52.8mm
Dimensions (With Mount)	522.79×314.3×62.8mm

Included Accessories

WiFi Antenna ×1
Remote Control ×1
Power Cord ×1
Wall Bracket ×1
