Home / Products / Indoor Digital Signage /

23.6 Inch Indoor Digital Signage with 300cd/m2 Brightness and 1920*1080 Resolution Interactive Display Screen

23.6 Inch Indoor Digital Signage with 300cd/m2 Brightness and 1920*1080 Resolution Interactive Display Screen

Brand Name: YOULESHI
Model Number: ULS-24BG02
MOQ: 1pcs
Supply Ability: 2000 pieces per month for each product
Detail Information
Place of Origin:
深圳
Certification:
CCC,RoHS,FCC,CE,UN38.3
Application:
Indoor
Type:
LCD
Color:
Full Color
Supplier Type:
ODM, Other, OEM
Media Available:
Datasheet, Photo
Place Of Origin:
Guangdong, China
Model Number:
ULS-24BG02
Brand Name:
YOULESHI
Use:
Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Exhibition Hall, Airport, Subway, Restaurant & Hotel Supplies, Education, Medical Treatment
Function:
SDK
Specification:
Digital Poster, Kiosk
Touch Screen Type:
Capacitive
Brightness:
300cd/m2
Display Ratio:
16:9
Response Time:
8ms
Contrast Ratio:
3000:1
Lifespan (hours):
60000
IP Rating:
IP45
Installation Type:
Hanging
Resolution:
1920*1080
View Angle(H/V):
178°(HV)
Warranty:
1 Year
Size:
10.1 Inch-110 Inch
Resolution:
1920*1080/3840*2160
OS:
Android/Windows
Touch Screen:
Optional
4G:
Optional
Warranty:
1-3 Year
Life Time:
60000 Hours
Connectivity:
WiFi, Bluetooth
Panel:
100% A+ Grade Panel
Picture Format:
Mp3, Wma, Ogg, Aac, Wav
Color Option:
White/Black Or Optional
Certificates:
CE FCC ROHS
Usb:
Yes
Max Resolution:
1920*1080/3840*2160
Screen Size:
10.1-110 Inches
Operation Humidity Range:
10% To 80%
Osd Language:
English,Chinese
Contrast:
≥ 1000: 1
Input:
AC 110V~240V,50/60Hz, 110W
Touch:
Optional
Warranty:
1-3Year
Packaging Details:
Paper box/wooden box/flying box
Highlight:

23.6 Inch Indoor Digital Signage

,

300cd/m2 Brightness Interactive Display Screen

,

1920*1080 Resolution LCD Advertising Display

Product Description
23.6 Inch Interactive Digital Signage Display

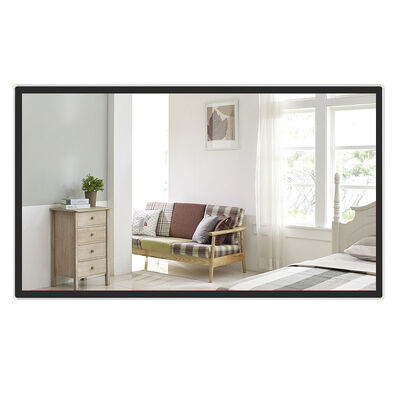

23.6 inch digital signage display front view 23.6 inch digital signage display side view 23.6 inch digital signage display in use
Key Features
  • 10.1-inch to 110-inch display options available
  • Automatic residual image removal function
  • High contrast and brightness for vivid image quality
  • Fast 8ms response time with 178° ultra-wide viewing angle
  • Compatible with Android or PC systems
  • Optional touch screen functionality
  • Local USB playback or remote program management
  • Industrial-grade power supply with safety protections
  • Low energy consumption with power outage protection
Panel Specifications
Screen Size 23.6"
Active Display Area 522 (H) x 294 (V)mm
Native Resolution 1920*1080 RGB
Aspect Ratio 16:9
Brightness 300 Nits
Contrast Ratio 3000:1
Viewing Angle 176°(H)/176°(V)
Response Time 8ms
Display Color 8 bit/16.7M
Backlight LED
Life Time 60,000 Hours
System Specifications
OS System Android 9.0
CPU Cortex-A53
Main Frequency 1.4 GHz
RAM DDR 1GB
Flash Memory EMMC 8G
Networking Support 4G Ethernet, WiFi, Bluetooth 4.0
Supported Formats Video: RMVB,FLV,AVI,MOV,WMV,MP4,MPEG
Image: JPG,JPEG,BMP,PNG,GIF
Audio: MP4,WMA,WAV,APE,FLAC,AAC
Connectivity & Power
Input Ports HDMI IN (Option), HDMI OUT*1, LAN/RJ45*1, TF*1, USB*2
Output Ports Earphone*1, 5W*2 speakers
Power Supply 100V-240V, 50-60 Hz
Power Consumption ≤30W (≤1W in power saving mode)
Physical Specifications
Chassis Colors Silver, Black (Optional)
Toughened Glass 3mm
Dimensions (Without mount) 564.4 x 345 x 45.6mm
Dimensions (With mount) 564.4 x 345 x 55.6mm
Accessories WIFI Antenna, Remote Control, Power Cord, Wall Bracket
Digital signage display connectivity ports Digital signage display side profile Digital signage display in retail environment Digital signage display menu interface Digital signage display wall mounting options Digital signage display remote control
