55 Inch 1920*1080 LCD Video Wall Panels With 89° Viewing Angle ODM OEM

Name: 55 Inch 1920*1080 LCD Video Wall Panels With 89° Viewing Angle ODM OEM
Brand: Shenzhen Youleshi Technology Co., Ltd
SKU: ULS-55PJ02
Availability: InStock

Brand Name:	YOULESHI
Model Number:	ULS-55PJ02
MOQ:	1pcs
Supply Ability:	2000 pieces per month for each product

Detail Information

Product Description

Detail Information

Certification:

CCC,RoHS,FCC,CE,UN38.3

Application:

Indoor

Type:

LCD

Color:

FULL COLOR

Supplier Type:

ODM, OEM

Media Available:

Datasheet, Photo

Place Of Origin:

Guangdong, China

Model Number:

ULS-55PJ02

Brand Name:

YOULESHI

Use:

Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Exhibition Hall, Subway, Restaurant & Hotel Supplies, Education

Function:

SDK

Specification:

Video Wall

Touch Screen Type:

Infrared

Brightness:

500nit

Display Ratio:

16:9

Response Time:

8ms

Contrast Ratio:

4000:1

Lifespan (hours):

80000

IP Rating:

IP45

Installation Type:

Hanging

Resolution:

1920*1080

View Angleï¼ˆH/Vï¼‰:

89Â°/89Â°/89Â°/89Â°(min)(CRâ‰¥10)

Warranty:

1-3Year

After Sales:

Video

Size:

10.1 Inch-110 Inch

Resolution:

1920*1080/3840*2160

OS:

Android/Windows

Touch Screen:

Optional

4G:

Optional

Warranty:

1-3 Year

Life Time:

60000 Hours

Connectivity:

WiFi, Bluetooth

Panel:

100% A+ Grade Panel

Picture Format:

Mp3, Wma, Ogg, Aac, Wav

Color Option:

White/Black Or Optional

Certificates:

CE FCC ROHS

Usb:

Yes

Max Resolution:

1920*1080/3840*2160

Screen Size:

10.1-110 Inches

Operation Humidity Range:

10% To 80%

Osd Language:

English,Chinese

Contrast:

≥ 1000: 1

Input:

AC 110V~240V,50/60Hz, 110W

Touch:

Optional

Packaging Details:

Paper box/wooden box/flying box

Highlight:

1920*1080 LCD Video Wall Panels

ODM LCD Video Wall Panels

OEM lcd video display

Product Description

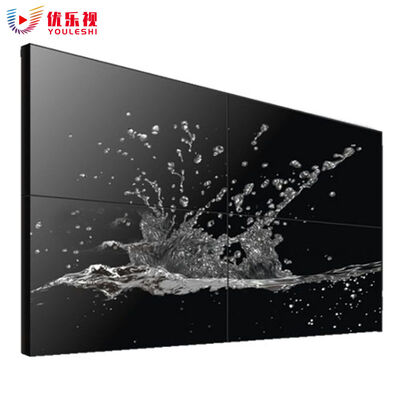

55" 3.5mm Border Display Screen LCD Video Splicing Wall

Premium Indoor Ultra-Narrow Seam High-Definition Advertising Display

Key Features

Industrial-grade design with 80,000 hours continuous operation
High brightness (500cd/m²), resolution (1920×1080), contrast (4000:1), and wide viewing angle
Ultra-narrow 3.5mm double-sided stitching for seamless video walls
Direct downward LED backlight system for uniform illumination
Built-in splicing controller for multi-screen image display
3D digital image processing core for enhanced detail monitoring
Image signal enhancement for stable, accurate control
Advanced image restoration technology improves system reliability
Supports multiple signal inputs including HDMI, DVI, and USB
Flexible customizable splicing configurations

Technical Specifications

Display Parameters

Screen Size	55" DID LCD Panel
Active Display Area	1209.6(H) × 680.4(V) mm
Aspect Ratio	16:9
Bezel Width	0.88mm
Backlight	WLED with LED driver
Native Resolution	1920 × 1080 pixels
Brightness	500cd/m²
Contrast Ratio	4000:1 (Typical)
Viewing Angle	89°/89°/89°/89° (CR≥10)
Response Time	8ms (Gray to Gray)

Connectivity

Ports	1× HDMI IN, 1× DVI IN, 1× USB, 1× RS232 IN, 2× RS232 OUT

Power Requirements

Working Voltage	AC110V~220V 50/60Hz
Maximum Power	250W
Standby Power	0.5W

Environmental Specifications

Operating Temperature	0°C ~ 50°C
Storage Temperature	-20°C ~ 60°C
Lifespan	80,000 hours
Humidity	10% ~ 80% RH

Physical Dimensions

Chassis Material	Metal
Chassis Color	Black
Product Size (without brackets)	1022 × 80 × 576.6 mm
Product Size (with brackets)	1214.1 × 125 × 684.6 mm
Packing Dimensions	1300 × 330 × 785 mm (2 units per carton)
Net Weight	21kg
Gross Weight	46kg (2 units)
