65 Inch 3.5mm Border LCD Wall Panels 500nit Brightness LCD Wall Display

65 Inch 3.5mm Border LCD Wall Panels 500nit Brightness LCD Wall Display

Brand Name: YOULESHI
Model Number: ULS-65PJ02
MOQ: 1pcs
Supply Ability: 2000 pieces per month for each product
Detail Information
Certification:
CCC,RoHS,FCC,CE,UN38.3
Application:
Indoor
Type:
LCD
Color:
Full Color
Supplier Type:
ODM, OEM
Media Available:
Datasheet, Photo
Place Of Origin:
Guangdong, China
Model Number:
ULS-65PJ02
Brand Name:
YOULESHI
Use:
Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Exhibition Hall, Subway, Restaurant & Hotel Supplies, Education
Function:
SDK
Specification:
Video Wall
Touch Screen Type:
Infrared
Brightness:
500nit
Display Ratio:
16:9
Response Time:
8ms
Contrast Ratio:
4000:1
Lifespan (hours):
80000
IP Rating:
IP45
Installation Type:
Hanging
Resolution:
1920*1080
View Angle(H/V):
89°/89°/89°/89°(min)(CR≥10)
Warranty:
1-3Year
Size:
10.1 Inch-110 Inch
Resolution:
1920*1080/3840*2160
OS:
Android/Windows
Touch Screen:
Optional
4G:
Optional
Warranty:
1-3 Year
Life Time:
60000 Hours
Connectivity:
WiFi, Bluetooth
Panel:
100% A+ Grade Panel
Picture Format:
Mp3, Wma, Ogg, Aac, Wav
Color Option:
White/Black Or Optional
Certificates:
CE FCC ROHS
Usb:
Yes
Max Resolution:
1920*1080/3840*2160
Screen Size:
10.1-110 Inches
Operation Humidity Range:
10% To 80%
Osd Language:
English,Chinese
Contrast:
≥ 1000: 1
Input:
AC 110V~240V,50/60Hz, 110W
Touch:
Optional
Packaging Details:
Paper box/wooden box/flying box
Highlight:

3.5mm Border LCD Wall Panels

,

500nit Brightness LCD Wall Display

,

65 Inch LCD Wall Panels

Product Description

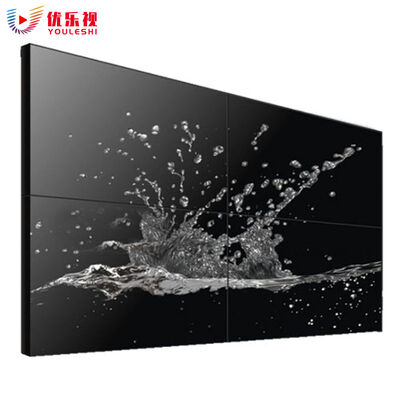

65" 3.5mm Border Display Screen LCD Video Splicing Wall

Ultra-narrow seam high-definition LCD display for indoor physical advertising walls and professional video wall applications.

Key Features
  • Industrial-grade design with 80,000 hours continuous operation capability
  • High brightness (500cd/m²), resolution (1920×1080), contrast (4000:1), and wide viewing angle
  • Ultra-narrow 3.5mm double-sided stitching for seamless video walls
  • Direct downward LED backlight system for uniform illumination
  • Built-in splicing controller for multi-screen image display
  • 3D digital image processing core for enhanced detail monitoring
  • Image signal enhancement for stable, accurate control
  • Advanced image restoration technology improves system reliability
  • Supports multiple signal inputs including HDMI, DVI, and USB
  • Flexible arbitrary splicing display configurations
Technical Specifications
Display Parameters
Screen Size 65" DID LCD Panel
Active Display Area 1428.48×803.52mm
Aspect Ratio 16:9
Bezel Width 3.5mm
Backlight WLED with LED driver
Native Resolution 1920×1080 pixels
Brightness 500cd/m²
Contrast Ratio 4000:1 (Typical)
Color Depth 8 bit/16.7M colors
Viewing Angle 89°/89°/89°/89° (CR≥10)
Response Time 8ms (Gray to Gray)
Connectivity
Ports 1× HDMI IN, 1× DVI IN, 1× USB, 1× RS232 IN, 2× RS232 OUT
Power Requirements
Working Voltage AC110V~220V 50/60Hz
Maximum Power 250W
Standby Power 0.5W
Environmental Specifications
Operating Temperature 0~50°C
Storage Temperature -20~60°C
Operating Humidity 10~80% RH
Lifespan 80,000 hours
Physical Dimensions
Chassis Material Metal
Chassis Color Black
Product Size (without brackets) 1432.46×149.53×807.5mm
Product Size (with brackets) 1432.46×149.53×807.5mm
Shipping Dimensions 1520×345×915mm (2 units per carton)
Net Weight 35kg
Gross Weight 75kg (2 units)
Included Accessories

Power cable, LAN cable, Hook, Bolts, Remote control, Remote receiver, Converter

Installation Options

Wall mount, Floor stand, Arm bracket, Cabinet
